Automating Power BI Dataset Refreshes with Fabric Pipelines

You can set up Power BI Dataset Refreshes to run by themselves in a few trusted ways. Many companies use Fabric Pipelines to make updates happen often. Power Automate can start a refresh when new data comes in. REST API and web activity give more control for harder tasks. Big companies use these tools to do less work by hand, handle lots of data, and make sure reports are always on time and correct.

Key Takeaways

• Fabric Pipelines help you refresh Power BI datasets automatically. This saves time and helps stop mistakes.

• You can use Power Automate and REST API for special refreshes. This gives you more choices for different needs.

• Set up the right permissions and service connections. This helps your dataset refreshes work well and stay safe.

• Use more than one workspace and deployment pipeline. This helps you handle development, testing, and production safely.

• Watch your refreshes with built-in tools. This helps you find problems early and keep your data correct and current.

Power BI Dataset Refreshes Automation

There are different ways to make Power BI Dataset Refreshes happen automatically. Each way is good for certain needs and how hard the job is. Here are the main choices and when to use them.

Fabric Pipelines Overview

Fabric Pipelines let you plan and control Power BI Dataset Refreshes in one spot. You can make a workflow that does many steps in order. This helps you decide when to load, change, and refresh data. You do not have to set up tricky API calls or worry about logging in.

Tip: Pick Fabric Pipelines if you want to do many data jobs together, like loading, changing, and then refreshing your reports.

Some reasons to use Fabric Pipelines are:

• You want to refresh datasets after other steps finish.

• You need to handle refreshes in more than one workspace.

• You want to get alerts or messages if something goes wrong.

• You work with big data models in Premium or Fabric capacity workspaces.

REST API and Web Activity

You can use the REST API to start Power BI Dataset Refreshes with code. This is good if you want more control or only need to refresh some tables. The REST API lets you send a request to begin a refresh. You can also use web activity in pipelines to call the API.

• The REST API has rules. You can send about 120 requests each minute. If you send too many, you get errors.

• Shared workspaces can only refresh 8 times each day.

• You can pick which tables or partitions to refresh, but you must handle logging in and fixing errors yourself.

Use REST API if you want special refresh rules or want to add automation to your own apps.

Power Automate Integration

Power Automate lets you make flows that refresh datasets when something happens, like a file update. You can use the Power BI connector to choose the workspace and dataset. You can start flows by hand or set them to run when files change in SharePoint or OneDrive.

Steps to use Power Automate:

1. Pick the 'refresh a dataset' action in Power Automate.

2. Choose your workspace and dataset.

3. Set what starts the flow, like a file change or button press.

4. Share the flow with others if they need it.

5. Test by updating a file and see if the dataset refreshes.

Power Automate is best for refreshes that happen after an event or when you want users to start refreshes from a report.

Prerequisites and Setup

Permissions and Authentication

You need the right permissions before you start. You also have to pick how you will log in. There are a few ways to do this:

• OAuth2 (User Delegated): This way uses short tokens. You must whitelist IPs. It is not good for refreshes that run by themselves.

• Service Principal (App-Only Authentication): This way works for refreshes that run alone. You do not need to whitelist IPs. Client secrets last two years. Certificates last longer.

• Managed Identity: This is best for Fabric Capacity. You do not need to handle secrets or change keys.

You must also have the right permissions:

• Entra ID permissions like Directory.Read.All

• Azure SQL Database permissions like db_datareader

• Power BI workspace permissions, such as Admin or Contributor

Tip: If you use Service Principal, upload certificates to Azure AD. This makes them last longer. For Managed Identity, turn it on in workspace settings. Give the right database roles.

Service Connections

You need to make service connections in Fabric Pipelines to automate refreshes. Here are the steps:

1. Make or pick a connection to your Power BI datasets.

2. Name your connection. Pick how you will log in. You can use an organizational account or a service principal.

3. After you make the connection, choose it in your pipeline activity settings.

4. Set up the workspace and dataset you want to refresh.

You might need to turn on service principal access in your Power BI tenant settings. Add your service principal or account to an Azure AD group. Give it member access to the workspace. When you make a connection, you can use either organizational account or service principal. Give the needed details.

Workspace and Model Preparation

Get your Power BI workspace and data model ready before you automate refreshes. Here is a checklist:

1. Put your data model and visualizations in two Power BI files. This helps you manage versions and work at the same time.

2. Connect your visualization file to the published data model with a live connection.

3. Save both files in a Git repository for version control.

4. Use at least two workspaces: one for Development & Test, and one for Production.

5. Link your Development & Test workspace with Git so you can work with others.

6. Use Deployment Pipelines to move finished work to Production.

7. Share your final product with users through a Power BI App.

Note: Some features, like Deployment Pipelines and workspace Git integration, need Power BI Premium per User or Fabric Capacity licenses. Turn on preview features in Power BI Desktop to save files as projects.

Setup Steps in Fabric Pipelines

Automating Power BI Dataset Refreshes with Fabric Pipelines saves time and helps stop mistakes. You can follow these steps to make sure your refresh works well.

Create Pipeline

First, you need to make a new pipeline in Fabric. This pipeline will manage the refresh for your datasets. Here is what you do:

1. Check that your workspace uses Premium Per User or Premium Capacity.

2. Go to Power BI Service and find the Deployment Pipelines icon on the left.

3. Click the green Create pipeline button.

4. Type a name for your pipeline. You can add a description too.

5. Set up 2 to 10 stages for your pipeline. Each stage can be for Development, Test, or Production.

6. Give each stage a workspace. Make sure each workspace has the right permissions and enough capacity.

7. Use the Deploy button to move things from one stage to the next.

8. If you need to change data sources between stages, set up deployment rules.

Tip: Use fake data in early stages to keep your real data safe. Only let people who need it have access.

Add Refresh Activity

After you make your pipeline, you need to add a refresh activity. This tells the pipeline to refresh your Power BI datasets.

• On the pipeline canvas, click the Pipeline activity card.

• Pick the Semantic model refresh option.

• If you already have a pipeline, go to the Activities tab and pick the Semantic model refresh activity icon.

You can add more activities if you want to do other jobs before or after the refresh. For example, you might want to load data or run a script first.

Configure Options

You can change settings to make your refresh work better and faster. Here are some important options:

• Timeout: Choose how long the refresh can run before it stops.

• Retry: Pick how many times the pipeline should try again if it fails. You can also set how long to wait between tries.

• Wait on completion: Decide if the pipeline should wait for the refresh to finish before moving on.

• Commit mode: Choose if you want to save changes in parts or all at once.

• Max parallelism: Set how many things can run at the same time. The default is 10.

• Retry count: Pick how many times the refresh itself should try again if it fails.

Note: Change the number of jobs running at once to balance speed and avoid timeouts. Use Tabular Editor for advanced settings. If you use incremental refresh, plan your partitions to fit your business. This helps you avoid slow full refreshes.

You can use parameters for different stages. For example, connect your Development stage to a test database and your Production stage to the real one. This keeps your data safe and makes moving to Production easier.

Schedule or Trigger

You can set your pipeline to run on a schedule or start when something happens. This helps you match your business needs.

• Use the built-in scheduler to run refreshes every day, week, or at special times.

• For more control, use Power Automate to start refreshes when something happens, like a file update or a business event.

• You can also set up triggers for special events, like after quarter-end results.

Tip: Power Automate lets you make complex schedules that Power BI Service cannot do. You can wait for certain things to happen or run refreshes on special dates.

Once you set up your schedule or trigger, the pipeline will handle Power BI Dataset Refreshes by itself. You do not need to start them by hand.

Handling Failures and Monitoring Status

You should always be ready for failures and watch your refreshes. Here are some good tips:

• Use Azure Key Vault to keep passwords safe.

• Get an Azure Active Directory token to allow refreshes.

• Load dataset IDs from a parameter file so you know which datasets to refresh.

• Start refreshes at the same time to save time.

• Use a loop to check if the refresh is done or failed.

• If the refresh takes too long, reset your token to stop timeouts.

• Save refresh results in Azure Data Lake Storage for checking later.

• Send email alerts at the start and end of each refresh to keep your team updated.

You can also use the Monitoring Hub in Fabric to see if your pipeline runs worked or failed. Look at run history dashboards and failure logs to find problems. Set up alerts to get messages if something goes wrong. Check logs often and fix problems fast to keep your Power BI Dataset Refreshes working well.

Note: Monitoring tools help you find slow spots and manage resources. Audit logs show who did what and help you stay safe.

Advanced Automation Scenarios

Event-Driven Refreshes

You can make refreshes happen when certain things occur. Fabric Pipelines can watch for changes in storage like OneLake or Azure Blob Storage. If a new file shows up or one is deleted, the Reflex trigger can start your pipeline. You pick which events to watch and set filters for names. This way, you do not need to use set schedules. Your refreshes can react to real business events as they happen.

Some ways to use event-driven refreshes are:

• Update inventory right away when sales data comes in.

• Act fast if there are strange data changes.

• Track customer actions as new data arrives.

• Run jobs again if something fails.

You can also use Fabric Activator, which does not need code, to watch for Power BI data refreshes. It can send alerts or start Power Automate flows when a refresh happens.

Chaining Dataflows and Datasets

You can link dataflows and datasets so each step happens in order. This helps stop mistakes and keeps your data up to date. Here is how you can do it:

1. Use Power Automate flows to refresh dataflows one after another.

2. Add checks to see if each dataflow is done before starting the next.

3. When all dataflows are done, refresh the dataset.

4. Set alerts to tell you if any step fails.

5. Do not run too many refreshes at once to keep data safe.

6. Make each step start only when the last one works.

7. For shared dataflows, use different flows so you do not refresh the same thing twice.

This way, your Power BI Dataset Refreshes stay steady and work well.

Workspace-Level Refresh

Fabric Pipelines let you refresh datasets in many workspaces at once. You can set which refresh happens first and which comes next. This makes sure each workspace updates at the right time. You can also use settings like Max parallelism, Retry count, and Commit Mode to control how refreshes run. This makes big data projects easier to manage.

Monitoring and Logging

You need to watch your refreshes to make sure they work. Fabric Pipelines give you tools for this:

• Monitoring Hub shows refresh status, start time, how long it took, and who started it.

• Power BI activity logs and audit logs help you track what users and systems do.

• The Feature Usage and Adoption report shows how often features and refreshes are used.

• Capacity Metrics App shows how much system power your refreshes use.

• Workspace Monitoring gives details on refresh times and data model sizes.

• You can make your own dashboards with Fabric APIs and logs for more details.

• Azure Monitor and Log Analytics let you set alerts and connect with other Azure tools.

These tools help you find problems early and keep your Power BI Dataset Refreshes working well.

Limitations and Best Practices

Known Issues

When you use Fabric Pipelines to automate dataset refreshes, you might run into some limits. These limits can change how often your data updates and how well it works.

• Your Power BI license decides how many times you can refresh each day. Pro licenses let you refresh up to 8 times a day. Premium licenses let you refresh up to 48 times a day.

• API refresh limits also depend on your license. If you try to refresh too much, you might get errors.

• Dataflows in Power Platform can refresh as much as you want. But the dataset refresh still follows Power BI rules.

• Storage and capacity can limit how much data you refresh. These limits depend on your license and if you use outside storage like Azure Data Lake.

• Performance can get worse when lots of people refresh at once. If many users refresh together, things may slow down.

Note: Always check your workspace’s capacity and license before setting up lots of refreshes.

Workarounds

You can use some smart ways to get around these limits.

1. Set refreshes to run when fewer people are using the system.

2. Use incremental refresh to only update new or changed data. This saves time and resources.

3. Break big datasets into smaller ones. Refresh them one after another to stay under the limits.

4. Watch your refresh history to find problems early.

5. Set up alerts to know if a refresh fails or takes too long.

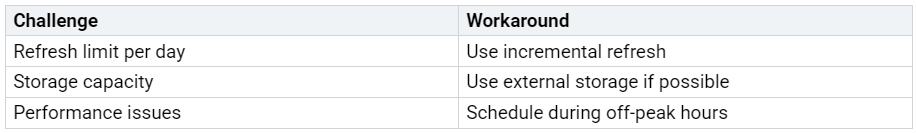

A table can help you plan:

Future Enhancements

There are new features coming that will make automation easier.

• The Semantic Model Refresh Activity is now ready. You can refresh datasets right in your pipelines.

• CI/CD tools now work with Fabric Data Pipelines. You can use Git and Deployment Pipelines to manage refreshes better.

• REST API support for Data Pipelines gives you more ways to automate and connect your refresh jobs.

Tip: Keep up with new updates. These features can help you make faster and more reliable refresh workflows.

---

Using Fabric Pipelines to automate Power BI Dataset Refreshes helps you get updates faster. You will make fewer mistakes and have more time for other work. Companies like Flora Food Group and BDO Belgium saw better teamwork. They also got real-time data after using Fabric. To do your best, watch how well your refreshes work. Write down when your refreshes happen. Change your refresh times so they run when fewer people are working. Join user groups and keep learning about new features. This will help you make your data work even better.

FAQ

How do you know if your dataset refresh worked?

You can look at the Monitoring Hub in Fabric. It tells you if the refresh worked or not. You can also see when it started and how long it took. If something goes wrong, you will get an alert. Always check the logs to find out more.

Can you refresh more than one dataset at the same time?

Yes, you can refresh more than one dataset together. Fabric Pipelines let you do this with parallel refreshes. Use the "Max parallelism" setting to pick how many run at once. This helps you finish big projects faster.

What should you do if a refresh fails?

First, look at the error message in the Monitoring Hub. Try to fix the problem, like updating your login or checking your data source. You can set up your pipeline to try again if it fails. This helps with common problems.

Do you need special permissions to automate dataset refreshes?

Yes, you need special permissions to do this. You must have Admin or Contributor access to the workspace. You also need the right way to log in, like a service principal or managed identity. Make sure your account has the correct roles.

Can you use Fabric Pipelines with Power BI Pro?

You need Premium Per User or Premium Capacity for most features. Power BI Pro does not let you use all automation tools. Check your license before you start making pipelines.
