How to Set Up Azure Front Door for Optimal Performance

Azure Front Door is a tool to improve website speed. It sends users to the closest server for faster loading. It can handle a lot of visitors at once. By using Azure API Management with Private Link, it keeps data private. This means less risk from the public internet. This setup makes your app safer and easier to use. Setting it up correctly helps you get the best speed and security.

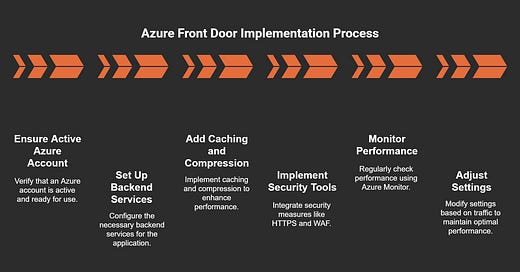

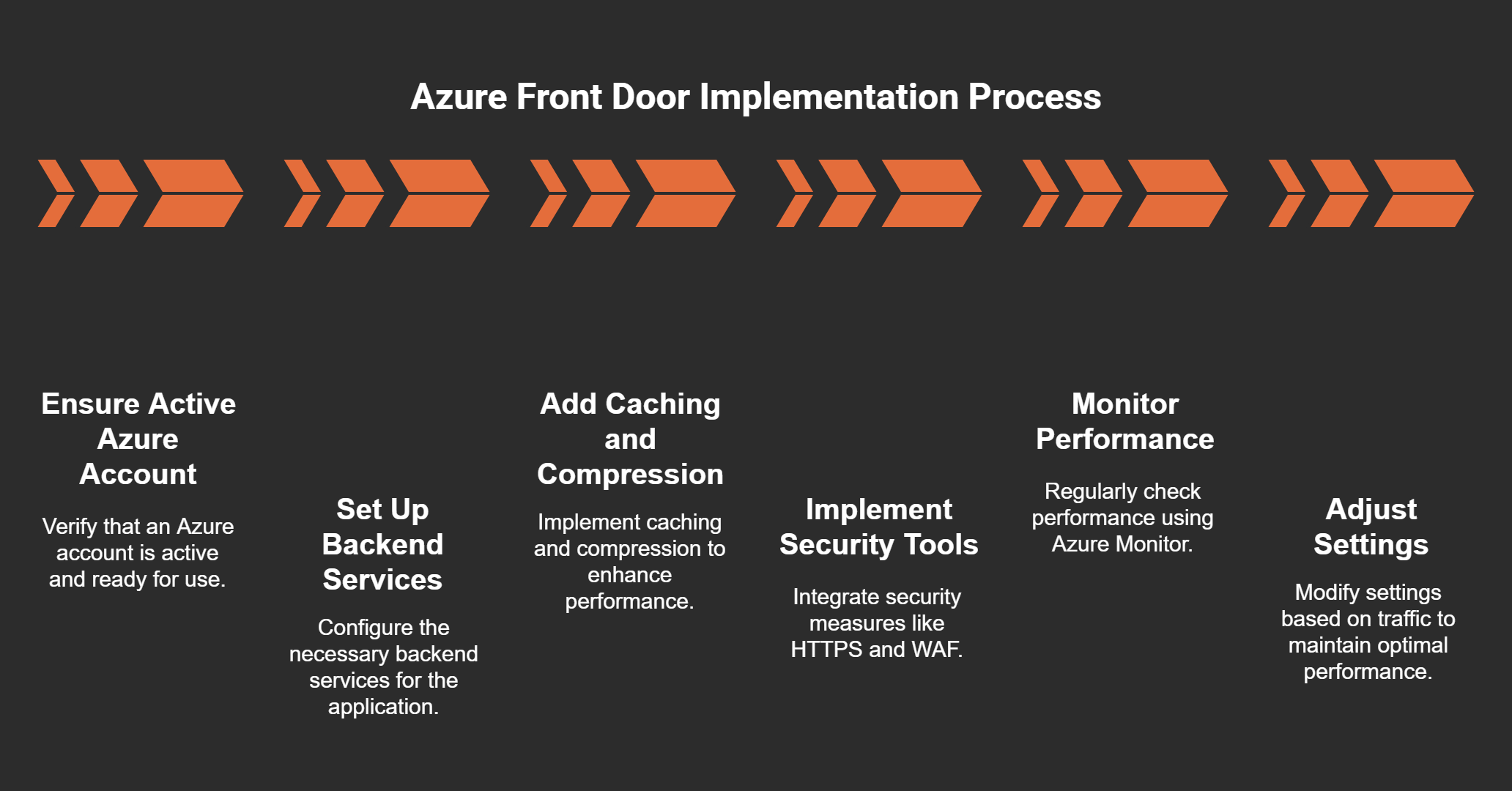

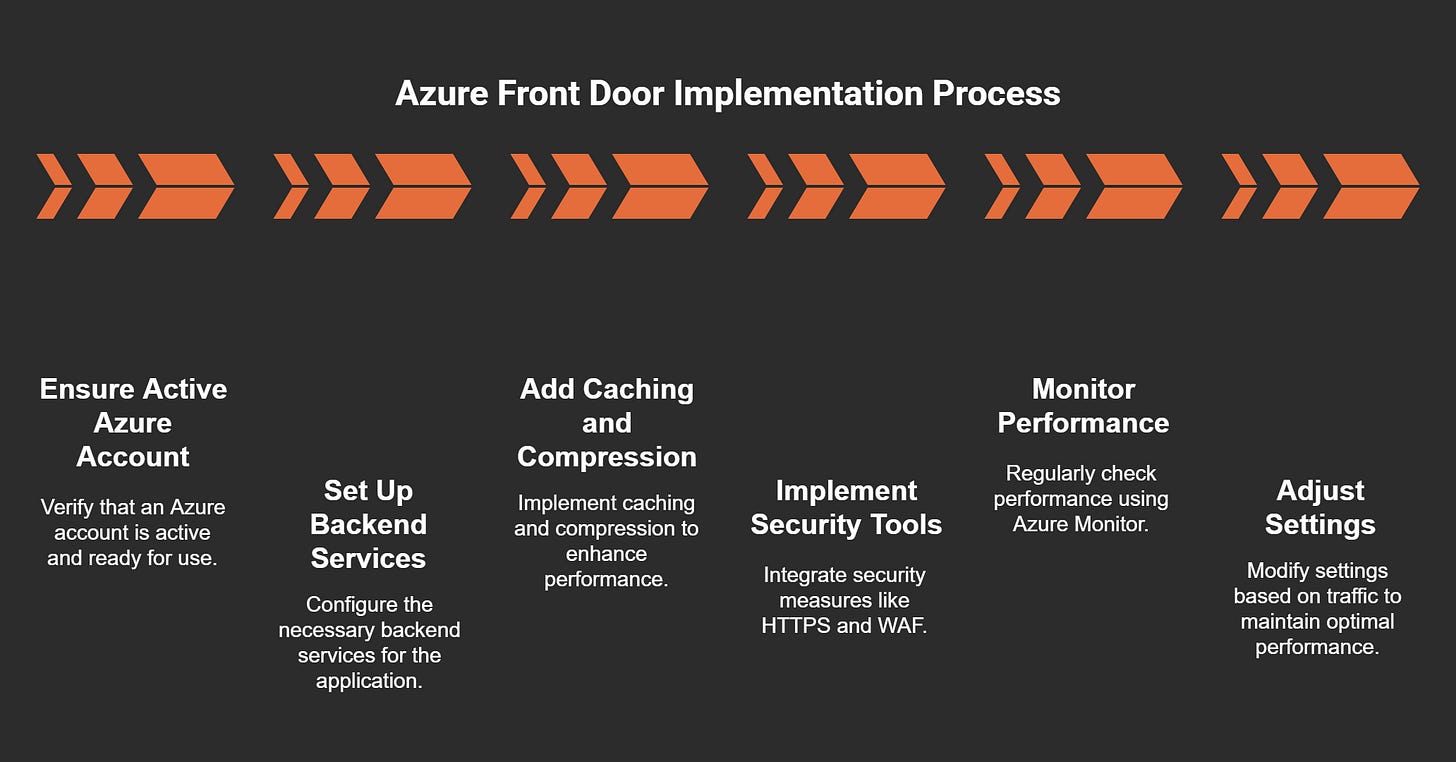

Key Takeaways

• Azure Front Door makes websites faster by sending users to the closest server, boosting speed.

• Make sure you have an active Azure account and set up backend services before starting.

• Add caching and compression to make your app faster and reduce work for servers.

• Use security tools like HTTPS, Web Application Firewall (WAF), and DDoS protection to keep your app safe.

• Check performance often with Azure Monitor and change settings based on traffic to keep things running well.

Prerequisites for Azure Front Door Setup

Before setting up Azure Front Door, you need to prepare a few things. These steps make the setup easier and help it work well.

Active Azure Subscription

You need an active Azure subscription to use Azure Front Door. This lets you access the Azure portal to create and manage your Front Door. If you don’t have one, sign up for a free trial or pick a paid plan. Make sure your subscription has enough permissions and resources to set up services.

Backend Services Configuration

Azure Front Door connects users to your backend services like web apps or APIs. Before starting, check that your backend services are set up and working. Each backend must have a public endpoint that Azure Front Door can reach. Test these endpoints to ensure they work properly. This is important because Front Door depends on these services to send content to users.

Custom Domain Availability

A custom domain makes your app look more professional. Before adding one to Azure Front Door, check if the domain is available and owned by you. Use sites like GoDaddy or Namecheap to search and buy a domain if needed. Once you have it, make sure you can update its DNS records during setup.

Tip: Choose a short and easy-to-remember domain name for better user experience.

Basic Networking Knowledge

Before using Azure Front Door, learn some basic networking ideas. This will help you set it up right and fix problems.

Important Networking Ideas to Know:

• DNS (Domain Name System): DNS changes names like www.example.com into numbers called IP addresses. You’ll need to change DNS records when adding a custom domain to Azure Front Door.

• IP Addresses: These are special numbers for devices on a network. Azure Front Door uses public IPs to link to your backend services. Make sure your backend can be reached online.

• HTTP and HTTPS Protocols: These rules control how data moves between browsers and servers. HTTPS is safer and protects user info. You’ll turn on HTTPS during setup.

• Load Balancing: This spreads traffic across servers to make things faster and more reliable. Azure Front Door works as a global load balancer, connecting users to the closest and quickest server.

Tip: If networking is new to you, check out Microsoft’s Azure guides or online videos. These can teach you the basics and make setup easier.

By learning these ideas, you can set up Azure Front Door with less trouble. This knowledge helps make your setup fast and safe.

Step-by-Step Guide to Setting Up Azure Front Door

Creating an Azure Front Door Instance

To begin, you need to create an Azure Front Door instance. This instance acts as the foundation for your setup. Follow these steps to get started:

1. Log in to the Azure Portal: Use your Azure account credentials to access the portal.

2. Search for Azure Front Door: In the search bar at the top, type "Azure Front Door" and select it from the results.

3. Click on 'Create': This will open a new page where you can configure your Front Door instance.

4. Fill in the Basics:

   • Choose a subscription and resource group.

   • Enter a name for your Front Door instance. Pick a name that reflects its purpose, like "MyAppFrontDoor."

   • Select a pricing tier based on your needs.

5. Review and Create: After filling in the details, click "Review + Create." Azure will validate your settings. Once validated, click "Create" to deploy your instance.

Tip: Double-check your settings before creating the instance. This saves time and avoids errors later.

Configuring Backend Pools

Backend pools are groups of servers or services that Azure Front Door connects to. These pools determine where user requests are sent. Here's how to configure them:

1. Navigate to Backend Pools: After creating your Front Door instance, go to the "Backend Pools" section in the settings.

2. Add a New Backend Pool:

   • Click "Add" to create a new pool.

   • Give the pool a name, like "WebAppPool" or "APIPool."

3. Add Backends:

   • Enter the public endpoint of your backend service (e.g., myapp.azurewebsites.net).

   • Set the priority and weight for each backend. Priority determines which backend is used first, while weight balances traffic between multiple backends.

4. Configure Health Probes:

   • Health probes check if your backend services are running. Set the probe protocol (HTTP or HTTPS), path (e.g., /health), and interval.

5. Save Your Changes: Click "Save" to apply the configuration.

Note: Test your backend endpoints before adding them. This ensures they are reachable and functioning correctly.

Setting Up Routing Rules

Routing rules define how Azure Front Door handles incoming traffic. These rules ensure users are directed to the right backend. Follow these steps to set them up:

1. Go to Routing Rules: In your Front Door instance, find the "Routing Rules" section.

2. Create a New Rule:

   • Click "Add" to create a rule.

   • Name the rule, such as "DefaultRoute" or "APIRoute."

3. Define the Frontend Endpoint:

   • Choose the frontend domain (e.g., myapp.azurefd.net) that users will access.

   • Specify the protocol (HTTP, HTTPS, or both).

4. Set the Backend Pool:

   • Select the backend pool you created earlier.

   • Configure the path patterns (e.g., /api/* for API traffic).

5. Enable Caching (Optional):

   • Turn on caching for static content like images or scripts. This improves performance by reducing backend load.

6. Save and Test: Save the rule and test it by accessing your frontend domain. Ensure traffic is routed correctly.

Tip: Use descriptive names for your routing rules. This makes it easier to manage them as your setup grows.

Adding and Verifying a Custom Domain

Adding a custom domain to Azure Front Door makes your app look better. It also helps people remember your website easily. Follow these steps to add and check your custom domain:

1. Go to Frontend Host Section:
   Open the Azure portal and find your Azure Front Door. Look for the "Frontend hosts" option in the settings.

2. Add Your Custom Domain:

   • Click "Add" to begin.

   • Type your custom domain name (e.g., www.yourdomain.com). Make sure you own this domain and can edit its DNS settings.

3. Prove Domain Ownership:
   Azure needs proof that you own the domain. To do this:

   • Log in to your domain provider (like GoDaddy or Namecheap).

   • Add a TXT record to your DNS settings. Azure will give you the exact details to enter.

   • Save the changes, go back to Azure, and click "Verify."

4. Link Domain to Frontend Host:
   After verification, Azure connects the domain to your Front Door. Now, users can visit your app using the new domain.

Tip: DNS updates might take time. If verification fails, wait and try again later.

Enabling HTTPS for Secure Communication

HTTPS keeps data between users and your app safe. Azure Front Door makes it simple to turn on HTTPS for your domain. Follow these steps:

1. Open Custom Domain Settings:
   In your Azure Front Door, go to "Frontend hosts." Select the custom domain you added.

2. Turn On HTTPS:

   • Switch the HTTPS option to "On."

   • Pick a certificate type:

     • Azure-managed certificate: Azure handles setup and renewals.

     • Custom certificate: Use your own SSL/TLS certificate if you want.

3. Set TLS Version:
   Choose TLS version 1.2 for better security. This ensures only secure browsers can connect.

4. Save Changes:
   Click "Save" to enable HTTPS. Azure will set up the certificate for your domain.

5. Check HTTPS Setup:
   Visit your domain in a browser. Make sure the URL starts with https:// and shows a padlock icon. This means HTTPS is working.

Note: If using a custom certificate, ensure it’s valid. An expired certificate can block users from accessing your app.

Turning on HTTPS protects user data and builds trust in your app.

Optimization Tips for Azure Front Door

Setting Up Caching Rules

Caching helps your app load faster. It stores popular content near users. This reduces the time needed to load pages. Azure Front Door has caching tools you can set up easily.

Follow these steps to configure caching:

1. Open Caching Settings: Go to your Azure Front Door and find "Caching."

2. Choose What to Cache: Pick content types for caching. Static files like images, CSS, and JavaScript are great options. These files don’t change often and load quickly from the cache.

3. Set Expiration Time: Decide how long files stay in the cache. Static files can have longer times. Skip caching for dynamic content to keep it updated.

4. Test and Check: Test your app after setting caching. Use Azure Monitor to see cache performance and loading speed.

Tip: Caching lowers server requests. This speeds up your app and makes it handle more users better.

Turning On Compression

Compression makes files smaller. Smaller files load faster and save data. Azure Front Door can compress text files like HTML, CSS, and JavaScript.

Here’s how to enable compression:

1. Find Compression Settings: In your Azure Front Door, look for "Compression" in the menu.

2. Enable Compression: Turn it on. Azure Front Door will shrink supported files before sending them.

3. Check File Types: Make sure the files you want compressed are supported. Text files work best. Skip compressing images or videos since they’re already optimized.

4. Test Results: Use browser tools or online checkers to confirm compression. Look for smaller file sizes and quicker loading.

Note: Combine compression with caching for better speed and user experience.

Using Traffic Routing Methods

Traffic routing decides how Azure Front Door sends users to your servers. Picking the right method improves speed and reliability. Azure Front Door offers different routing options.

Here are some common methods:

• Priority Routing: Set a main server and backups. If the main server fails, backups take over.

• Weighted Routing: Split traffic between servers based on weights. Use this for balancing or testing features.

• Latency-Based Routing: Send users to the fastest server with the least delay.

• Geographic Routing: Direct users to servers near their location. For example, send European users to a Europe-based server.

To set up routing:

1. Go to Routing Rules: Open your Azure Front Door and find "Routing Rules."

2. Pick a Method: Choose the routing type that fits your app.

3. Set Conditions: Add rules like user location or server priority.

4. Test Routing: Simulate user requests from different places to check routing works.

Tip: Use health probes with routing. This ensures users are sent to working servers.

Using Geo-Filtering for Performance and Security

Geo-filtering lets you control who can access your app based on location. This feature helps your app run faster and stay safer. With Azure Front Door, setting up geo-filtering is simple.

How Geo-Filtering Improves Performance

Blocking access from certain areas reduces extra traffic to your app. This allows your servers to focus on users in allowed regions. For example, if your business serves only North America, you can block other continents. This lowers server work and speeds up responses for your users.

Geo-filtering works well with Azure Front Door's load balancing. Together, they connect users in allowed areas to the nearest, fastest server. This reduces delays and improves their experience.

How Geo-Filtering Enhances Security

Geo-filtering adds security by blocking risky regions. Many cyberattacks come from specific places. Blocking these areas lowers the chance of attacks on your app. For instance, if you see strange traffic from a region you don’t serve, you can block it to stop threats.

It also helps follow data privacy rules. Some laws require limiting access to sensitive data by location. Geo-filtering ensures only approved regions can access your app.

Steps to Set Up Geo-Filtering in Azure Front Door

Follow these steps to set up geo-filtering:

1. Log in to Azure: Open your Azure account and find your Azure Front Door.

2. Go to Rules Engine: Look for "Rules Engine" in the settings. This is where you create rules.

3. Add a Rule: Click "Add Rule" and name it, like "GeoFilterRule."

4. Set Conditions: Choose "Country/Region" as the condition. List the countries or regions to allow or block.

5. Apply the Rule: Attach the rule to your frontend domain. This makes the rule work for incoming traffic.

6. Test the Rule: Use tools like Azure Monitor to check if it works. Try accessing your app from different places to confirm.

Tip: Check your geo-filtering rules often. Update them if your needs or risks change.

Best Practices for Geo-Filtering

• Start with Allowed Regions: Only allow access from areas where your users are. This reduces risks.

• Watch Traffic Patterns: Use Azure Traffic Analytics to spot unusual traffic. Adjust rules as needed.

• Use with Other Security Tools: Combine geo-filtering with Web Application Firewall (WAF) and DDoS protection for better safety.

Geo-filtering is a great way to boost speed and security. Azure Front Door makes it easy to set up and manage these rules for a better app experience.

Security Best Practices for Azure Front Door

Setting Up Web Application Firewall (WAF) Policies

A Web Application Firewall (WAF) helps protect your app from online threats. With Azure Front Door, you can create WAF policies to block harmful traffic. These policies use rules to filter requests.

1. Create a WAF Policy:
   Open the Azure portal and go to the WAF section. Click "Add Policy" and name it, like "MyAppWAFPolicy."

2. Set Rules:
   Add rules to stop attacks like SQL injection or XSS. Use ready-made rules for common threats or make custom ones for specific needs.

3. Apply the Policy:
   Attach the WAF policy to your Azure Front Door. This ensures all traffic is checked by the firewall.

Tip: Update your WAF rules often to handle new threats.

Enforcing HTTPS Across All Traffic

HTTPS secures data between users and your app. Azure Front Door makes it simple to enforce HTTPS for all traffic.

1. Turn On HTTPS:
   Go to "Frontend hosts," pick your domain, and enable HTTPS. Use an Azure-managed certificate for easy setup and renewal.

2. Redirect HTTP to HTTPS:
   Create a rule to send all HTTP requests to HTTPS. This ensures users always connect securely.

3. Test Your Setup:
   Visit your app using HTTP and HTTPS. Check that HTTP redirects to HTTPS automatically.

Note: Using HTTPS protects user data and builds trust in your app.

Enabling DDoS Protection

DDoS attacks flood your app with fake traffic, making it slow or unavailable. Azure Front Door includes tools to protect against these attacks.

1. Enable DDoS Protection:
   Azure provides basic DDoS protection for all resources. For stronger security, turn on Azure DDoS Protection Standard in your account.

2. Watch Traffic:
   Use Azure Monitor to check for unusual traffic spikes. These could mean an attack is happening.

3. Set Alerts:
   Create alerts to warn you about possible DDoS attacks. This helps you act quickly to reduce downtime.

Tip: Use DDoS protection with WAF policies for better security.

Limiting Access with IP Whitelisting and Geo-Restrictions

Keeping your app safe and fast is important. Azure Front Door offers two tools to help: IP whitelisting and geo-restrictions. These tools let you decide who can use your app and block unwanted visitors.

What is IP Whitelisting?

IP whitelisting means only certain IP addresses can reach your app. This ensures only trusted people or systems can connect. For example, you can allow access from your office or specific partners.

Steps to set up IP whitelisting in Azure Front Door:

1. Log in to Azure and open your Front Door.

2. Find the "Rules Engine" section.

3. Create a rule and name it, like "IPWhitelistRule."

4. Choose "IP Address" as the condition and add allowed IPs.

5. Attach the rule to your frontend domain.

Tip: Update your whitelist often. Add new trusted IPs and remove old ones.

What are Geo-Restrictions?

Geo-restrictions block or allow access based on location. This is helpful for stopping traffic from risky areas or places you don’t serve.

Steps to enable geo-restrictions:

1. Open the "Rules Engine" in Azure Front Door.

2. Create a rule and name it, like "GeoRestrictionRule."

3. Set "Country/Region" as the condition. Add allowed or blocked locations.

4. Save and test the rule to check it works.

Note: Use geo-restrictions with IP whitelisting for better security.

These tools help keep your app safe and reliable. Azure Front Door makes it simple to set up and manage these restrictions.

Monitoring and Troubleshooting Azure Front Door

Using Azure Monitor for Metrics and Alerts

Azure Monitor helps you check how well Azure Front Door works. It shows important numbers and sends alerts to fix problems early.

1. Open Azure Monitor: Log in to Azure and find Azure Monitor. Pick your Azure Front Door from the resource list.

2. Check Metrics: Look at numbers like speed, traffic, and backend health. These show how your system is performing.

3. Set Alerts: Make alerts for key issues. For example, create one for slow speed or backend errors. Alerts warn you quickly about problems.

Tip: Check these numbers often to catch and stop issues early.

Enabling and Analyzing Diagnostic Logs

Diagnostic logs give details about Azure Front Door traffic. These logs help you find and fix problems.

1. Turn On Logs: Go to Azure Front Door settings. Find "Diagnostics" and enable logging. Pick a storage account or send logs to Azure Monitor.

2. Review Logs: Use tools like Log Analytics to study logs. Look for errors or strange traffic patterns. For example, check for repeated failed requests.

3. Save Logs Elsewhere: Export logs to other tools for deeper checks. This helps with advanced problem-solving.

Note: Don’t keep logs too long. Storing them for a long time can cost more.

Testing and Verifying Health Probes

Health probes check if backend services are working. Testing these probes ensures your system runs smoothly.

1. Review Probe Settings: Open "Backend Pools" in Azure Front Door. Make sure probe settings match your backend setup.

2. Test Probes: Use tools like curl or Postman to send test requests. Check if your backend replies correctly.

3. Watch Probe Results: See probe results in Azure Monitor. Look for failed probes and fix any issues.

Tip: Update probe settings if you change your backend setup.

Understanding Traffic with Azure Traffic Analytics

Azure Traffic Analytics shows how users interact with your app. It helps you see traffic patterns to improve speed and safety. By studying this data, you can make better choices for your setup.

Why Check Traffic Patterns?

Traffic patterns show where users are from and what they do. This helps you find slow spots, prepare for busy times, and spot strange activity. For example, a sudden traffic spike from a new area might mean a security risk.

How to Use Azure Traffic Analytics

1. Turn On Traffic Analytics:
   Open Azure and go to "Traffic Analytics." Enable it for your Azure Front Door. This starts collecting data.

2. Pick a Log Storage:
   Choose where to save logs, like Azure Log Analytics. Log Analytics lets you view and explore the data easily.

3. Study the Data:
   Use ready-made or custom queries to check traffic trends. For example, see the busiest pages or areas with slow speeds.

4. Make Changes:
   Use the insights to update routing, caching, or security. For instance, if one server is slow, send traffic to faster ones.

Tip: Check traffic analytics often to fix problems early and keep your app running well.

Why Use Traffic Analytics?

• Faster Performance: Adjust settings based on user activity.

• Stronger Security: Spot and stop unusual traffic quickly.

• Smarter Planning: Use past data to prepare for busy times.

Azure Traffic Analytics works with Azure Front Door to keep your app fast and safe for users.

---

Setting up Azure Front Door needs a few steps. First, make sure you have an Azure account and working backend services. Next, set up backend pools, routing rules, and custom domains. Use caching, compression, and traffic routing to make your app faster. Add security tools like HTTPS, WAF, and DDoS protection to keep it safe.

Azure Front Door makes your app faster, bigger, and safer. Follow this guide to build a strong and smooth setup. Learn more about its features to get even better results for your app.

FAQ

What does Azure Front Door do?

Azure Front Door makes your app faster, bigger, and safer. It sends users to the closest server, spreads traffic evenly, and stops online threats. You can also turn on HTTPS, caching, and custom domains for a better experience.

---

Can Azure Front Door work without a custom domain?

Yes, Azure Front Door works without a custom domain. Azure gives you a default domain like yourapp.azurefd.net. But using a custom domain makes your app look better and easier to remember.

---

How does Azure Front Door keep apps secure?

Azure Front Door has tools like HTTPS, Web Application Firewall (WAF), and DDoS protection. These tools protect your app by keeping data safe, blocking bad traffic, and stopping attacks. You can also use IP whitelisting and geo-restrictions for extra security.

---

Do I need to know coding to use Azure Front Door?

No, you don’t need coding skills. Azure Front Door has an easy-to-use interface in the Azure portal. You can set up backend pools, routing rules, and security settings by clicking options. Microsoft also offers guides to help you.

---

How can I check Azure Front Door’s performance?

Use Azure Monitor to see traffic, speed, and backend health. Set alerts to know about problems quickly. Turn on diagnostic logs and traffic analytics to study patterns and improve your app.

Tip: Check metrics and logs often to keep your app working well.
