Improve Power BI Report Speed by Configuring Aggregation and Dual Storage Mode

Configuring aggregation tables and dual storage mode can transform your experience with power bi. You often see slow visuals or lagging dashboards in power bi, especially as your data grows. These issues can limit your ability to explore insights quickly. When you use aggregation tables, you let power bi answer queries faster by summarizing large data. Dual storage mode gives your models the flexibility to switch between import and direct query, depending on what your report needs. This approach can boost Power BI Performance and keep your users happy. Try these techniques in your own power bi models to unlock better speed and efficiency.

Key Takeaways

• Use aggregation tables to summarize large data sets, which helps Power BI answer queries faster and makes reports load quickly.

• Set dimension tables to dual storage mode when they connect to both import and direct query tables to balance speed and data freshness.

• Organize your data model with fact and dimension tables using a star schema to improve query speed and report clarity.

• Create and map aggregation tables carefully, linking them to dimension tables with proper relationships to boost report performance.

• Regularly test and monitor your Power BI reports using tools like Performance Analyzer and DAX Studio to ensure your optimizations work well.

Power BI Performance Basics

Aggregation Tables

You can boost power bi performance by using aggregation tables. An aggregation table summarizes large amounts of data into smaller, more manageable chunks. When you use an aggregation table, power bi can answer queries faster because it does not need to scan every row in your main fact table. Instead, it looks at the summarized data first. This approach works well for dashboards that show totals, averages, or counts.

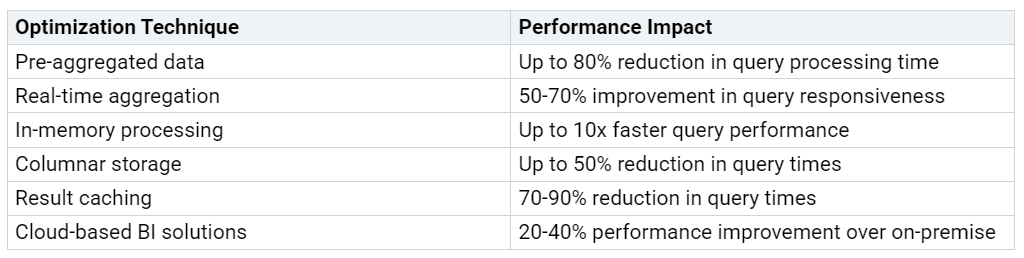

Industry benchmarks show how much aggregation tables can help. Take a look at the table below:

You can see that using an aggregation table can make your power bi reports much faster. When you set up an aggregation table, you help power bi performance by reducing the amount of data it needs to process. This means your visuals load quickly, and users get answers faster.

Tip: Use aggregation tables for common queries, such as sales by month or product category. This keeps your reports responsive even with millions of rows.

Storage Modes Overview

Power bi gives you several ways to store and access your data. You can choose a storage mode for each table in your model. The main options are Import, DirectQuery, and Dual mode.

• Import mode loads data into memory. This makes queries very fast and supports all power bi features. You should use import mode for tables that do not change often or are not too large.

• DirectQuery mode keeps data in the source system. Power bi sends queries to the source every time you interact with a visual. This mode works well for very large or real-time datasets, but it can be slower and has some feature limits.

• Dual mode lets a table act as both import and direct query. Power bi decides which mode to use based on the query. This flexibility helps you balance speed and data freshness.

You can improve power bi performance by choosing the right storage mode for each table. For example, use import mode for your aggregation table and direct query for your main fact table. Set dimension tables to dual mode if they connect to both import and direct query tables. This setup gives you the best mix of speed and up-to-date data.

To measure power bi performance, track key metrics like time to interactive, load times, and the number of visuals per page. Use the Performance Analyzer in power bi desktop to collect baseline data. Try to keep your main pages simple and use drillthrough or tooltips for extra details. This approach helps you spot slow visuals and optimize your aggregation table and storage mode choices.

Dual Storage Mode

How Dual Mode Works

You can use dual storage mode in Power BI to make your data models smarter and faster. This mode lets a table act as both Import and DirectQuery, depending on how you use it in your reports. When you set a table to dual, Power BI decides which storage mode to use based on the other tables in your query. If your visual uses only import tables, Power BI will use the cached data for speed. If your visual needs to connect to a direct query table, Power BI will switch and pull data from the source in real time.

This flexibility helps you get the best of both worlds. You can cache important data for quick access and still get up-to-date information when you need it. For example, a Date table in dual mode can answer queries quickly when used with an import table, but it can also work with a direct query table for real-time analysis. Power BI performance improves because the model only queries the source when necessary.

Note: Dual storage mode supports aggregation scenarios by storing summary data in import mode and detailed data in direct query mode. This setup reduces memory usage and speeds up refresh times.

When to Use Dual Mode

You should use dual storage mode when you have tables that connect to both import and direct query tables in your model. This situation often happens with dimension tables, like Date or Product tables. If a dimension table links to an aggregated table (import) and a detailed fact table (direct query), dual mode lets Power BI choose the fastest way to answer each query.

Here are some common scenarios where dual mode is necessary:

• Your Date table connects to both an import aggregation table and a direct query fact table.

• Your Product or Customer table relates to multiple tables with different storage modes.

• You want to avoid sending unnecessary queries to your data source for small, frequently used tables.

A real-world example shows how much dual storage mode can help. In a case study using the NYC Yellow Taxi Trips dataset, the Power BI model size dropped by 90%, from about 4 GB to 400 MB. Visuals loaded 10 to 20 times faster, and the initial report load time fell from 30 seconds to just 3 seconds. Users noticed the difference right away and asked for more complex reports because the performance improved so much. The team used dual storage mode to cache dimension tables and kept large fact tables in direct query. This approach reduced cross-source joins and made the reports much more responsive.

You can see the benefits of dual storage mode in Power BI performance:

Tip: Set dimension tables to dual mode if they connect to both import and direct query tables. This setup gives you the best mix of speed and up-to-date data.

By using dual storage mode, you can optimize your Power BI models for both speed and flexibility. You help your users get answers faster and keep your reports running smoothly, even as your data grows.

Prepare the Data Model

Fact and Dimension Tables

You need to start your power bi model by organizing your data into fact tables and dimension tables. The fact table holds the main data you want to analyze, such as sales or transactions. Dimension tables describe the details about each fact, like product, customer, or date. When you build your model, you should use a star schema. This design puts the fact table in the center and connects it to each dimension table. You make your power bi model faster and easier to understand with this setup.

Follow these best practices to prepare your data:

1. Use a star schema to keep your model simple and boost query speed.

2. Reduce cardinality by removing columns with too many unique values from your dimension tables.

3. Limit calculated columns and use measures instead to save memory and improve refresh times.

4. Remove unused columns and rows from both fact and dimension tables to keep your model lean.

5. Organize your tables into logical groups for better readability.

Tip: Create hierarchies in your dimension tables, such as year > quarter > month in your date dimension, to help users drill down in reports.

Set Storage Modes

Choosing the right storage mode for each table in your power bi model is key to performance. You can set tables to Import, Direct Query, or Dual mode. Each mode affects how power bi handles your data.

Set your fact table to Direct Query if you have a large dataset or need real-time data. Use Import mode for your aggregation tables to speed up queries. Set your dimension tables to Dual mode if they connect to both import and direct query tables. This setup lets your model switch between speed and freshness as needed.

Note: Avoid bi-directional relationships between your fact table and dimension tables. Stick to single-direction links to keep your power bi model running smoothly.

Create Aggregation Tables

Methods to Create Aggregations

You can create an aggregation table in Power BI using several user-defined methods. Each method helps you summarize large amounts of data, making your reports faster and easier to use. When you build a user-defined aggregation table, you reduce the number of rows Power BI needs to scan. This step is key for improving report speed and responsiveness.

You have three main ways to create a user-defined aggregation table:

1. Power Query:
   Use the Group By feature in Power Query to summarize your data. You can group by fields like product, date, or region. Then, you can add aggregation functions such as sum, min, or max. This method creates a new aggregated table that stores only the summarized results.

2. DAX (Data Analysis Expressions):
   Write DAX formulas like SUMMARIZE or GROUPBY to build a user-defined aggregation table. DAX gives you more control over your aggregations. You can define custom columns and measures for your user-defined aggregations.

3. Source Database:
   Create the aggregated table directly in your database using SQL. You can use GROUP BY statements to summarize your data before it even reaches Power BI. This method works well for very large datasets.

Tip: Choose the method that fits your workflow. If you want to keep everything inside Power BI, use Power Query or DAX. If your data source is huge, build the aggregation table in your database.

When you create a user-defined aggregation table, you must decide which fields to include. Focus on the columns your reports use most often, such as sales totals by month or product. This approach keeps your aggregated table small and efficient. For example, a sales agg table might group sales by product and month, storing only the totals.

Aggregation tables precalculate and store summarized data at different granularities. This reduces complex calculations during queries. Power BI can route queries to the aggregation table, which avoids unnecessary calculations and speeds up your visuals. You should monitor and refresh your aggregated tables regularly to keep your data accurate.

You can also create user-defined aggregations at different levels. For example, you might have one aggregated table for sales by product and another for sales by region. Storing summarized results separately allows Power BI to answer queries faster.

Performance Analyzer in Power BI helps you measure the impact of your aggregation tables. You can track query duration, data model size, and visual rendering time. After you add a user-defined aggregation table, you should see shorter query times and a smaller data model.

Note: Managing aggregations means keeping your user-defined aggregation tables updated and choosing the right storage mode, such as Import for the sales agg table.

Configure Relationships

After you create your user-defined aggregation table, you need to configure relationships in Power BI. Relationships connect your aggregated table to other tables in your model, such as dimension tables. Setting up these links correctly is important for fast and accurate queries.

Follow these steps to configure relationships for your user-defined aggregation table:

• Connect your aggregated table to dimension tables using key columns like ProductID or Date.

• Use single-direction relationships to keep your model simple and efficient.

• Clean your key columns before merging. Remove duplicates and fix data types to improve join efficiency.

• Disable loading for any intermediate or staging tables you do not need. This step reduces data bloat and speeds up refresh times.

Tip: Apply aggregation functions like sum or max during merges in Power Query. This prevents duplicate rows and keeps your dataset lean.

Reducing the number of tables loaded into your Power BI data model frees up memory and processing power. When you disable unused tables, you speed up both refresh and query execution. Merging with aggregation preserves data quality and optimizes model size. This leads to faster report refreshes and more responsive dashboards.

Carefully selecting join types and cleaning key columns before merging improves data integrity. Maintaining a lean data model by disabling unused tables and aggregating data supports scalable, maintainable, and high-performing Power BI reports.

When you configure relationships for your user-defined aggregation table, Power BI can route queries efficiently. This setup lets your reports use the aggregated table for common queries, such as totals or averages. For more detailed queries, Power BI can switch to the detailed fact table.

A user-defined aggregation table, like a sales agg table, works best when you connect it to the right dimension tables. This setup allows Power BI to answer most queries using the aggregated table, which minimizes data scans and improves performance.

Note: Regularly review your relationships and aggregation tables as your data grows. Update your user-defined aggregations to match new reporting needs.

Map Aggregations

Manage Aggregations Dialog

You can map your aggregation table in Power BI using the manage aggregations dialog. This tool lets you define how your aggregated table connects to your detailed data. When you open the manage aggregations dialog, you see options to set up aggregation functions and group-by fields. You match these fields with the columns in your aggregation table. Power BI uses this mapping to decide when to use the aggregated table instead of the detailed table.

The manage aggregations dialog improves report performance. When you set up aggregations correctly, Power BI answers queries using the in-memory aggregation table. This means your visuals load faster because Power BI does not need to scan the detailed table every time. You see the biggest impact when you use aggregation functions like sum, min, max, and distinct count calculations. The dialog also helps you avoid mistakes, such as missing group-by columns, which can prevent Power BI from using your aggregation.

Tip: Use the manage aggregations dialog to check that your aggregation table matches the structure of your detailed table. This step ensures Power BI can use the aggregated table for most queries.

Aggregation Functions

Aggregation functions play a key role in mapping your aggregation table. You use functions like sum, min, max, count, and distinct count calculations to summarize your data. When you set up your aggregation, you choose which aggregation functions to apply to each column. For example, you might use sum for sales, max for order date, or distinct count calculations for customer IDs.

You should follow these guidelines for effective aggregation mapping:

• Use group-by columns that match your detailed table. Missing group-by fields stop Power BI from using the aggregation.

• Limit distinct count calculations to 2 to 5 million unique values. Larger counts slow down your queries.

• Avoid chaining aggregations across three or more tables. This keeps your model fast and valid.

• Match data types between your aggregation table and detailed table, except for count and count table rows.

• Store your aggregation table in import mode and your detailed table in direct query mode for best performance.

• Use SQL Profiler to check if your dax query hits the in-memory aggregation or goes to the data source.

• Keep your cache in sync when you use import, direct query, and dual storage modes together.

Automatic aggregations use machine learning to keep your in-memory cache updated. This feature learns from your dax query patterns and updates the aggregation table to serve most queries quickly. You get better scalability and faster report response times. When you use user-defined aggregations, you control which aggregation functions and group-by fields Power BI uses.

Note: Disable SSO-enabled data sources for your aggregation table to avoid performance issues with security enforcement.

You can use dax to create custom aggregation functions or to test if your dax query uses the aggregation table. Distinct count calculations are powerful but need careful setup. If you use too many distinct count calculations or have too many unique values, your dax query may slow down.

A well-mapped aggregation table helps Power BI answer most queries using the aggregated table. You get faster visuals, lower memory use, and a better user experience.

Test and Validate

Run Performance Tests

You need to test your Power BI report after setting up aggregation tables and dual storage mode. Start by opening your report and waiting for all visuals to load. Use the Performance Analyzer tool in Power BI Desktop. This tool helps you see how long each visual takes to load and which queries run in the background. Refresh your visuals and capture the dax queries. Save these queries for future checks.

To get reliable results, follow a structured approach:

1. Compare sample results to the full dataset. This helps you check if your aggregations give accurate answers.

2. Change sample sizes and see if results stay consistent.

3. Use statistical tests to spot any bias or errors.

4. Try cross-validation to confirm your sampling is robust.

You can also automate your tests. Store your dax queries and use Power Automate to run them on a schedule. This keeps your validation process efficient and ongoing.

Performance tuning works best when you measure before and after changes. For example, a test on a dataset with over 10 million rows showed a summarization query dropped from 90 seconds to less than one second after adding aggregation tables and dual storage mode. Performance Analyzer confirmed visuals using aggregations loaded almost instantly, while others still took much longer.

Tip: Run each test multiple times and at different times of day. This helps you average out any network or server slowdowns.

Monitor Query Behavior

You should monitor query behavior to make sure your optimizations work. Use tools like DAX Studio, SSMS Profiler, and Performance Analyzer. These tools let you track dax query times and see which tables Power BI uses for each visual.

• DAX Studio benchmarks dax queries and shows if they hit the aggregation table.

• SSMS Profiler measures Power Query performance.

• Performance Analyzer in Power BI Desktop gives you a clear view of report performance.

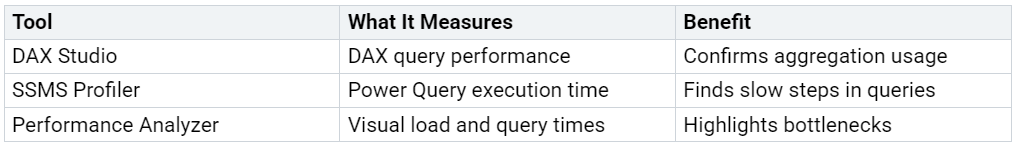

Track your results in a table:

Repeat your tests after each change. Only keep changes that show clear, repeatable improvements. This evidence-based approach ensures your performance tuning efforts lead to faster, more reliable reports.

Troubleshooting and Best Practices

Common Issues

You may face some challenges when working with dual storage mode and aggregation in Power BI. Sometimes, queries do not use your aggregation table as expected. This can happen if your dimension tables do not have the right storage mode. If a dimension table connects to both an import aggregation table and a direct query fact table, you must set it to dual storage mode. This lets Power BI decide the best way to answer each query and prevents sending unnecessary queries to your source.

Unexpected query routing is another common issue. If you see slow visuals or your data source gets too many queries, check your relationships and storage modes. Make sure related tables use compatible storage modes. Changing a table to dual mode may take time because Power BI creates an in-memory copy of the data. Always monitor your aggregation usage to spot when queries miss the aggregation table.

You might also run into limits with DirectQuery, such as the 1 million row cap. Many-to-many relationships between tables from different sources can slow down your model. Try to use one-to-many relationships and keep your data model simple.

Tip: If you notice slow performance, review your data model for unused columns or tables. Removing them can speed up your reports.

Maintain Aggregations

As your data grows, you need to keep your aggregation tables efficient. Start by trimming unnecessary columns and rows. This reduces the amount of data Power BI needs to process and can improve report load times by up to 50%. Use aggregations to summarize detailed data, such as rolling up daily sales into monthly totals. This step can cut query times by 70%.

Choose the right data types for your columns. Whole numbers process faster than decimals. Limit calculated columns and use measures instead to keep your model lean. Schedule data refreshes during off-peak hours and use incremental refresh to update only changed data. Partition large tables to process only the data you need.

Regularly review your aggregation tables and update them as your reporting needs change. Use Power BI’s auto-aggregation features if available. These steps help you keep your reports fast and responsive, even as your data grows.

---

You can boost Power BI performance by using aggregation tables and dual storage mode. These features help your model answer queries faster and handle large data with ease. When you set up your Power BI model this way, you make your reports more responsive. Try these steps in your own Power BI projects. Explore advanced aggregation options and use monitoring tools to keep your data and model running smoothly. Start tuning your Power BI reports today for a better user experience and faster insights.

FAQ

What is the main benefit of using aggregation tables in Power BI?

Aggregation tables help you speed up your reports. You let Power BI answer most queries with summarized data. This reduces the time needed to load visuals and keeps your dashboards responsive.

When should you set a table to dual storage mode?

Set a table to dual storage mode when it connects to both import and direct query tables. This lets Power BI choose the fastest way to answer each query, improving both speed and data freshness.

Can you use multiple aggregation tables in one model?

Yes, you can use several aggregation tables. Each table can summarize data at different levels, such as by month or by product. This approach helps you answer a wider range of queries quickly.

How do you know if Power BI uses your aggregation table?

Use the Performance Analyzer or DAX Studio. These tools show which tables Power BI queries. If you see your aggregation table in the results, Power BI uses it for that visual.

What happens if you do not set dimension tables to dual mode?

If you skip dual mode for dimension tables, Power BI may send more queries to your data source. This can slow down your reports and reduce the benefits of using aggregation tables.
