Step-by-Step Guide to Creating Real-Time IoT Data Dashboards with Microsoft Fabric

You can use real-time IoT Data Monitoring to watch equipment. It helps keep people safe and saves money. In places like factories and hospitals, dashboards help you check machines. They also help you see patient vitals and manage supplies. Fewer than 20% of groups use these tools now. This means you can get ahead. With Microsoft Fabric, you connect devices and look at live data. You can also set up alerts using Azure IoT Hub, Eventstream, KQL, Power BI, and Data Activator.

Key Takeaways

• Microsoft Fabric lets you make real-time IoT dashboards. These dashboards show live data from devices. This helps you watch equipment and keep people safe.

• Important tools like Azure IoT Hub, Eventstream, KQL Database, Data Activator, and Power BI work together. They help collect, process, study, and show IoT data fast.

• To set up your IoT dashboard, first connect devices to Azure IoT Hub. Then, use Eventstream to send the data. Store the data in KQL Database. Make live dashboards with Power BI.

• Use Kusto Query Language (KQL) to study streaming data. You can find patterns and make visual reports. These reports update right away for quick choices.

• Use Data Activator to set up alerts and actions. This helps you fix problems fast. It saves time, lowers risks, and keeps your system working well.

Prerequisites

Accounts and Permissions

You need the right accounts and permissions before you begin. You must have an Azure account that is active. You also need to use Microsoft Fabric. Make sure you can create and manage things on both platforms. If you are in a group, ask your admin for the right roles. You need Contributor access in Azure. In Microsoft Fabric, you need to make workspaces and datasets.

Tip: Try logging in to Azure and Microsoft Fabric to check your access. If you cannot make things, ask your IT support for help.

Required Resources

You need some tools and services to make a real-time IoT dashboard. Each tool has a special job to do. Here is a quick list:

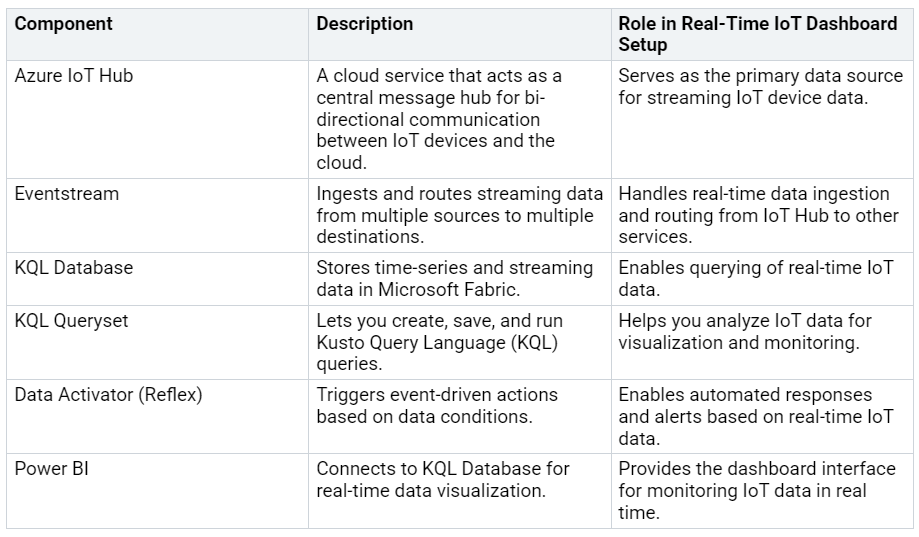

Table detailing components involved in creating real-time IoT data dashboards with Microsoft Fabric. Components include Azure IoT Hub, Eventstream, KQL Database, KQL Queryset, Data Activator (Reflex), and Power BI. Each entry describes the component's function and role in real-time IoT dashboard setup.

Azure IoT Hub collects data from your devices. Eventstream sends this data to the KQL Database. KQL Queryset lets you write queries to look for problems or patterns. Data Activator checks for special events, like a sensor reading that is too high, and can send alerts. Power BI shows your data in simple charts and graphs.

Note: Microsoft Fabric works with Azure IoT Hub to keep your data moving in real time. This helps you spot problems fast and fix them quickly.

IoT Data Monitoring Setup

Connect IoT Devices

To begin IoT Data Monitoring, you must connect your devices to Azure IoT Hub. This step lets you get data from sensors or machines right away. Here are the steps to set up your connection:

1. Create an Azure IoT Hub in the Azure portal. The hub is where your device messages go.

2. Register each device in the IoT Hub. When you add a device, you get a special connection string for it.

3. Set up message routing by making an Event Hub namespace and an event hub. This helps move data from IoT Hub to other places.

4. Configure your device or simulator with the connection string. Use the IoT Hub SDK to send data from your device to the cloud.

5. Create a table in your KQL Database to keep and organize the new data for checking later.

Tip: Azure IoT Hub works with many protocols like MQTT, AMQP, and HTTPS. MQTT and AMQP are best for devices that stay connected. HTTPS is good for devices that send data sometimes.

Configure Eventstream

Once your devices are connected, you need to set up Eventstream in Microsoft Fabric. Eventstream helps you manage real-time data from many places, like Azure IoT Hub. You can use a simple drag-and-drop editor to design your data flow.

• Eventstream lets you bring in data from different streaming sources, like IoT Hub and Event Hubs.

• You can make real-time changes to your data, such as filtering, grouping, or joining events, before sending them to other places.

• Eventstream sends your data to places like Lakehouse, Eventhouse (KQL Database), Power BI, or custom endpoints.

• Security is important. Eventstream uses Azure Active Directory and SAS keys to keep your data safe.

• The system supports fast, non-stop streaming. This means you can trust it for quick IoT Data Monitoring.

Note: Eventstream’s visual editor makes it simple to set up data flows without code. You can easily change how your data is handled and where it goes.

Data Storage and Processing

Eventhouse (KQL Database)

You need a strong place to keep fast IoT data. Eventhouse gives you this power. It is built for event-driven data like IoT telemetry and time-series streams. You can store millions of events every hour with almost no wait. Eventhouse manages many KQL databases. These are great for quick searches and looking at lots of streaming data. You can use it for data that is structured, semi-structured, or unstructured. Eventhouse lets you add, sort, and split up your data almost right away. This helps you find and use your data fast.

Eventhouse works with other Microsoft Fabric tools. You can use Activator for automatic actions or Real-Time Dashboards to see live data. The system is serverless and saves money. You only pay for what you use. Eventhouse uses tiered caching. This means it keeps new data ready for fast searches. Older data moves to cold storage to save money.

Tip: Eventhouse sorts and splits your data as soon as it comes in. This means you do less work and get answers faster.

Here is a quick table to compare Eventhouse and Lakehouse for IoT:

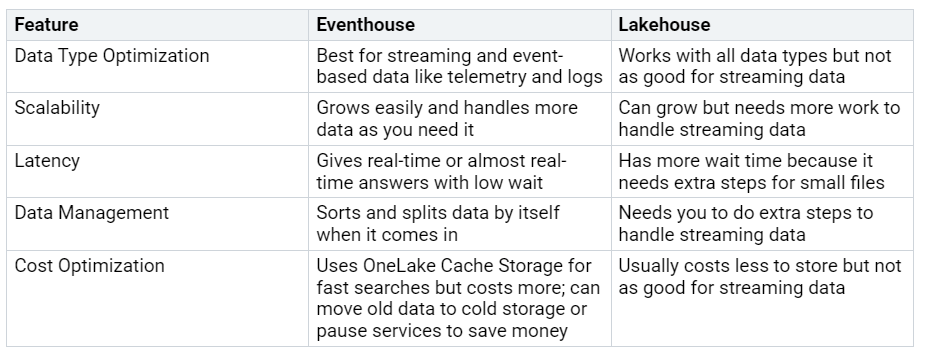

Comparison table of features between Eventhouse and Lakehouse for IoT data management. Eventhouse is optimized for streaming data like telemetry and logs, scales easily, offers real-time low latency responses, auto-sorts incoming data, and uses OneLake Cache Storage for fast searches albeit at higher cost. Lakehouse supports all data types but is less efficient for streaming, requires more work for scalability, has higher latency, needs extra steps for data management, and usually offers lower storage costs.

Schema and Preparation

You need to plan your schema and get your data ready for real-time analytics. Here are some tips:

1. Make the KQL database your main place for event streams. This helps you handle fast IoT data.

2. Set up table schemas that match your incoming JSON telemetry. This makes it easier to read and search your data.

3. Keep your data schema the same. This stops mistakes and makes searching easy.

4. Use data retention rules. Save old data somewhere else but keep new data easy to get.

5. Split and sort your tables by time or keys. This makes searching big data sets faster.

6. Watch your stream’s health and speed. Check things like how much data comes in and how fast it moves to find problems early.

7. Link KQL query results to dashboards and alerts. This helps you turn raw data into useful information.

To get your data ready for real-time analytics, you should:

1. Clean and change raw IoT data. Fill in missing parts and remove repeats.

2. Denormalize your data. This means putting related data together to make searches faster.

3. Use fast stream processing tools to keep up with IoT data speed.

Note: Cleaning your data is very important. IoT data can have mistakes or noise. Good cleaning makes your analytics correct and trustworthy.

Real-Time Analytics and Dashboards

KQL Queries

You can use Kusto Query Language (KQL) to look at streaming IoT data right away. KQL works with many types of data, like structured and unstructured. It helps you spot trends and find problems fast. Here is how you use KQL for IoT Data Monitoring:

1. Ingest streaming data into your KQL table from places like Azure IoT Hub or Event Hub. This step puts all your device data together.

2. Filter and project data to see what matters most. You can filter by device type or location and pick the fields you need.

3. Aggregate data using the summarize operator. You can count events, find averages, or add up values over time. This helps you see patterns, like how many alerts happened in the last hour.

4. Visualize results with KQL's render operators. You can make time charts or column charts to track changes and compare numbers.

5. Pin query results to dashboards. This lets you see live updates and share what you find with your team.

6. Use advanced KQL functions for time series analysis, finding odd data, and even guessing future problems. These tools help you spot trouble before it starts.

7. Leverage Copilot in Microsoft Fabric to write KQL queries from plain language. You can type what you want, and Copilot makes the query for you.

Here is a simple KQL query example. This query counts how many temperature alerts sensors sent in the last 10 minutes:

SensorData
| where Timestamp > ago(10m) and AlertType == "Temperature"
| summarize AlertCount = count() by bin(Timestamp, 1m)
| render timechart

Tip: KQL Database is made for speed. It can handle millions of events every second and lets many people use it at once. You do not need to set up indexes or partitions. The system does this for you.

You can make your queries faster by keeping only new data in the real-time store. This saves money and makes searches quick. KQL also works with maps and time series, which helps you track devices by place or time.

Build Dashboard

You can turn your KQL queries into live dashboards with Power BI or Microsoft Fabric's tools. Dashboards help you see your IoT data right away and make fast choices. Follow these steps to build your dashboard:

1. Create a new dashboard in Power BI. Click the '+' icon to start.

2. Add a new tile and pick 'Custom Streaming Data' as the type.

3. Select your streaming dataset that comes from your IoT data.

4. Create a card tile to show the latest sensor value, like temperature or humidity. Pick the right field for your data.

5. Customize the tile by setting the title and other options. Save your changes to see the live tile.

6. Add more visualizations like line charts, bar charts, or gauges. For a line chart, set the axis to timestamp and the value to your sensor data.

7. Repeat for other data streams to build a full view of your system.

You can use many types of visualizations for real-time IoT dashboards:

• Line charts show trends over time, like temperature changes.

• Bar charts compare values, such as error counts by device.

• Gauges show current values against set limits, so you can spot issues fast.

• Heatmaps highlight busy areas or high values, like hotspots on a factory floor.

• Maps show where devices are and how they work in different places.

• Scatter plots help you find links between two things, like temperature and humidity.

These visualizations give you instant feedback. You can act fast when things change and stop problems before they get worse. This is important in places like factories, hospitals, and smart cities.

Note: To get real-time updates in Power BI, use Direct Query mode when you connect to your KQL Database. This makes sure your dashboard always shows the newest data.

You can also set up alerts and automate actions with Power Automate or Data Activator. This helps you respond to problems as soon as they happen. For example, you can send an email or start a workflow if a sensor value goes above a safe limit.

IoT Data Monitoring dashboards help you watch equipment, check patient vitals, or manage energy use. You can use these tools in many jobs to keep people safe, save money, and make better choices.

Automation and Best Practices

Alerts and Actions

You can set up alerts and actions in Microsoft Fabric with Activator. This tool helps you act fast when problems show up. Activator watches your streaming data for rules you make. If something strange happens, it can send a message or start a task. Here are some things Activator can help with:

• Watch eventstreams from places like IoT Hub.

• Look for rule matches, like high numbers or sudden changes.

• Start actions like sending emails, Teams messages, or Power Automate flows.

• Run data pipelines or machine learning notebooks if needed.

• Stop repeated alerts so you do not get too many messages.

• Show what a rule will do before you turn it on.

Tip: Activator only uses power when rules are working, so you save money.

To make good alerts in IoT Data Monitoring, try these best ideas:

1. Use one platform to watch all your devices.

2. Set clear limits based on normal device actions.

3. Link alerts to tools that help you act fast.

4. Keep your data safe with encryption and access controls.

Troubleshooting

If you see delays or missing data, check the raw data pages for your devices first. Dashboards might show delays that are not real. Try using sample code to find out if the problem is with the device, the network, or the platform.

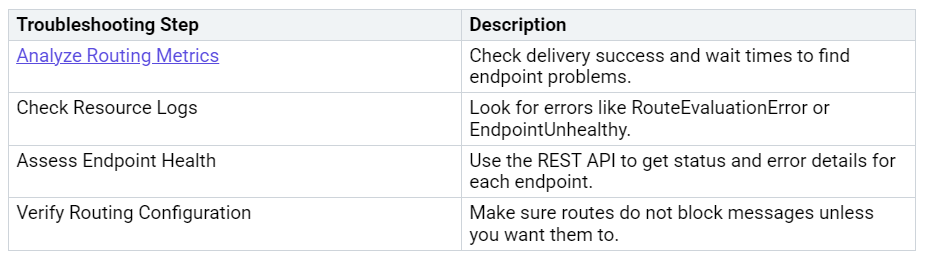

Table for troubleshooting IoT data issues with Microsoft Fabric, listing steps such as analyzing routing metrics, checking resource logs, assessing endpoint health, and verifying routing configuration. Each step includes descriptions like checking delivery success and using the REST API for status details.

You can also make things work better by using different network types, checking network health often, and keeping your device software updated.

Optimization

You can make your real-time dashboards faster and better by doing these things:

1. Use star or snowflake schemas to keep queries easy.

2. Load only new or changed data to save time.

3. Pick DirectQuery for real-time, but use Import mode for speed if you can.

4. Split big tables by time to make searches faster.

5. Use compression to save space and help performance.

6. Use dedicated capacity for better scaling.

7. Automate data prep and use tools to find slow spots.

8. Split data in OneLake by time or place for quicker queries.

9. Use edge computing to process data close to where it starts.

10. Set up autoscaling and load balancing to handle busy times without wasting resources.

Keeping your pipelines in small parts and using parallel processing helps you grow as your IoT Data Monitoring gets bigger.

---

You now know how to make a real-time IoT Data Monitoring dashboard with Microsoft Fabric. This platform lets you bring in data, process it, and see live dashboards all in one spot. You can get quick insights, keep your data safe, and set up easy automation. New tools like real-time SQL transformation and machine learning scoring help make your dashboards even smarter.

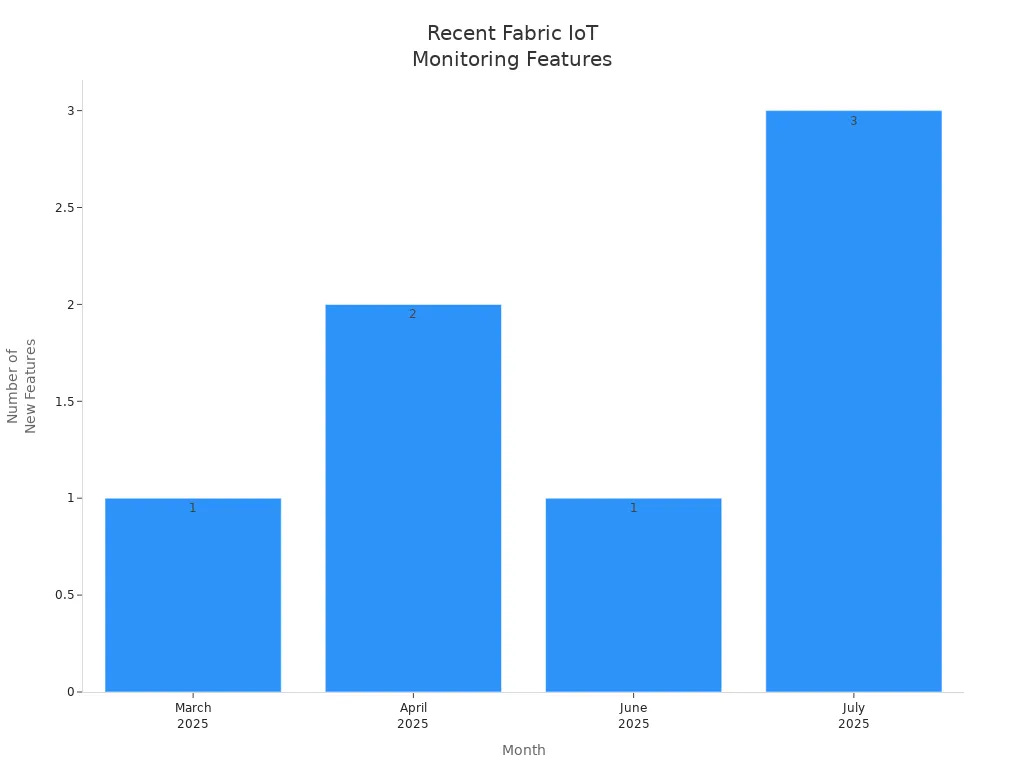

Bar chart showing the number of new Fabric IoT monitoring features from March to July 2025, highlighting an increase from 1 in March to 3 in July.

To learn more, visit the official Microsoft Learn guide about building real-time dashboards with Fabric.

FAQ

How do you connect a new IoT device to Azure IoT Hub?

You register your device in the Azure IoT Hub. You get a connection string. You use this string in your device code. This lets your device send data to the cloud.

Can you see live data in Power BI dashboards?

Yes, you can. You use DirectQuery to connect Power BI to your KQL Database. Your dashboard updates with new data as it arrives.

What should you do if your dashboard shows old data?

Check your data source connection first. Make sure your device sends data. Refresh your dashboard. If you still see old data, review your Eventstream and KQL settings.

How do you set up an alert for high sensor values?

You use Data Activator in Microsoft Fabric. You create a rule for your sensor value. When the value goes above your set limit, Activator sends an alert or starts an action.
