Step-by-Step Guide to Page Level Security in Power BI

Page level security in Power BI enables you to control which report pages users can access based on their roles or permissions. This approach safeguards sensitive information and tailors the user experience to specific needs. For instance, a sales team might only see sales-related pages, while executives access dashboards with high-level metrics.

Implementing page-level access enhances data governance and ensures users engage with relevant content. Although Power BI lacks a built-in feature for this, you can use creative techniques to achieve similar functionality effectively.

Key Takeaways

• Page-level security in Power BI limits who sees certain pages. It helps keep data safe and organized.

• Make a security table to set user roles and permissions. This ensures users only view the pages and data they need.

• Use DAX formulas to filter page access and manage buttons. This makes it easier and safer for users.

• Test your security setup often in Power BI Service. This ensures users only see the pages they are allowed to.

• Update your security table when user roles change. This keeps page-level security working well over time.

Understanding the Need for Page Level Security

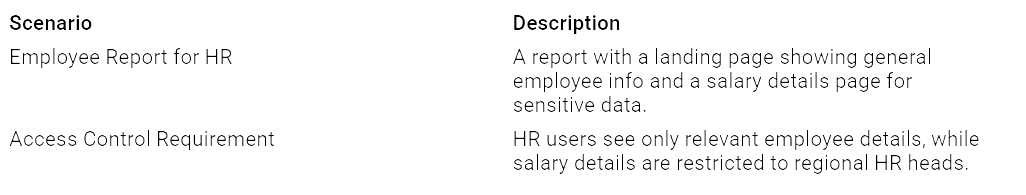

Scenarios where page level access is essential

Page-level access becomes critical when you need to control who sees specific pages in a report. Different users often require tailored views based on their roles or responsibilities. For example, in an HR report, you might have a landing page with general employee information and another page containing sensitive salary details. While HR users can access the general page, only regional HR heads should view salary data.

This approach ensures that users interact only with the pages relevant to their roles, reducing confusion and safeguarding sensitive information.

Benefits of implementing page-level security in Power BI

Page-level security offers several advantages that enhance both data governance and user experience:

• Restricts data access based on user identity

• Eliminates the need for separate reports

• Generates personalized views for each role

By implementing page-level security, you improve data security and provide tailored insights for different roles. Users see only the pages they need, which simplifies navigation and boosts productivity. For example, Row-Level Security (RLS) ensures that users access data relevant to their roles. This not only strengthens security but also creates a seamless experience by eliminating the need for multiple reports.

Page-level security helps you deliver insights efficiently while maintaining control over sensitive information. It’s a powerful way to align your reports with the needs of diverse teams.

Preparing for Page Level Security Implementation

Creating a security table for user roles

To implement page-level security effectively, you need a security table that defines user roles and their access permissions. This table acts as the foundation for controlling access to specific report pages. Start by creating a table in your Power BI model that includes columns for user identifiers (such as email addresses) and their assigned roles.

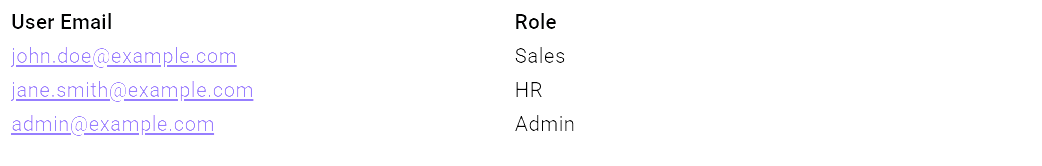

For example, your security table might look like this:

This table ensures that each user is associated with a specific role. By doing so, you can define which pages they can access based on their role. Keep the table updated to reflect changes in user roles or organizational structure.

Tip: Use a data source like Excel, SQL Server, or SharePoint to maintain the security table. This makes it easier to manage and update user roles over time.

Setting up relationships between the security table and report pages

Once you have created the security table, the next step is to establish relationships between the table and your report pages. In Power BI Desktop, you can use a helper table that maps roles to specific pages. This helper table should include columns for roles and page identifiers.

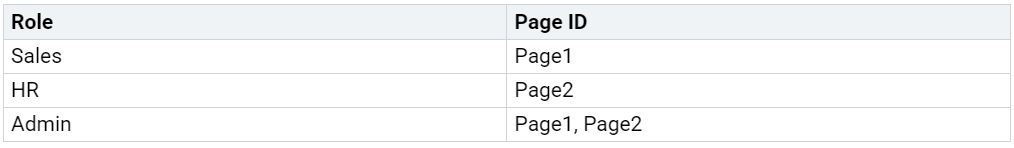

For instance:

After creating the helper table, link it to the security table using the "Role" column. Then, connect the helper table to your report pages using the "Page ID" column. These relationships allow you to filter pages dynamically based on user roles.

Note: Ensure that the relationships are set to "Single" direction to avoid circular dependencies in your model.

Defining user roles and permissions in Power BI Desktop

Defining user roles and permissions is a crucial step in implementing page-level security. In Power BI Desktop, navigate to the "Modeling" tab and select "Manage Roles." Here, you can create roles that align with the ones defined in your security table.

For each role, write DAX expressions to filter data based on the user's identity. For example, you can use the USERPRINCIPALNAME() function to match the logged-in user's email with the "User Email" column in your security table. This ensures that users only see the pages assigned to their roles.

Defining roles and permissions not only enhances page-level security but also improves overall data governance. According to measurable improvements observed in Power BI Desktop:

By defining user roles and permissions, you create a secure and efficient environment for managing access to your Power BI reports. This step ensures that users interact only with the data and pages relevant to their roles, enhancing both security and user experience.

Step-by-Step Guide to Implementing Page Level Security

Adding a security table to your Power BI model

To begin implementing page-level security, you need to add the security table you created earlier to your Power BI model. This table acts as the backbone for controlling access to specific report pages.

1. Open your Power BI Desktop file and navigate to the "Home" tab.

2. Click on "Get Data" and select the source where your security table is stored (e.g., Excel, SQL Server, or SharePoint).

3. Load the table into your Power BI model.

Once the table is added, verify that it contains the necessary columns, such as user email and role. These columns will help you define access permissions for each user.

Tip: Keep your security table updated to reflect changes in user roles or organizational structure. This ensures that your page-level security remains accurate and effective.

Defining roles and assigning users

After adding the security table, the next step is to define roles and assign users to them. This process ensures that each user can only access the pages relevant to their role.

1. Go to the "Modeling" tab in Power BI Desktop and select "Manage Roles."

2. Create a new role for each user group (e.g., Sales, HR, Admin).

3. Write DAX expressions to filter data based on the user's role. For example, use the following DAX formula to match the logged-in user's email with the "User Email" column in your security table:

[User Email] = USERPRINCIPALNAME()

1. Assign users to their respective roles in the Power BI Service. Navigate to the "Security" settings of your dataset and add users to the appropriate roles.

By defining roles and assigning users, you create a secure environment where each user sees only the pages they are authorized to access. For instance, in a complex Power BI report with pages for Sales, Operations, and HR, this setup ensures that the Finance team only views the Finance page, while the HR team accesses the HR page. Admins or management can view all pages, demonstrating the importance of restricting access based on roles.

Creating DAX measures for page-level navigation

To control page access dynamically, you need to create DAX measures that enable page-level navigation. These measures act as filters, determining which pages users can see based on their roles.

1. In Power BI Desktop, create a new measure for each report page. Use a DAX formula to check if the user's role matches the page's assigned role. For example:

Page1_Access = IF(SELECTEDVALUE(SecurityTable[Role]) = "Sales", 1, 0)

1. Repeat this process for all report pages, replacing "Sales" with the appropriate role for each page.

2. Use these measures to control the visibility of navigation buttons or slicers that link to different pages. For instance, set the "Page1_Access" measure as a filter for the navigation button leading to Page 1.

These DAX measures ensure that users can only navigate to the pages they are authorized to view. This approach enhances page-level security by dynamically filtering access based on user roles.

Note: Test your DAX measures thoroughly to ensure they work as intended. This step is crucial for validating your page-level security setup.

Using navigation buttons to control page access

Navigation buttons play a crucial role in implementing page level access in Power BI. These buttons allow users to move between pages while ensuring they only access the pages permitted by their roles. You can use them to create a seamless and secure navigation experience for your report users.

Steps to Set Up Navigation Buttons

1. Add Buttons to Your Report Pages
   Open your Power BI report and navigate to the page where you want to add a button. Select the "Insert" tab and choose "Button" from the options. You can pick from various button styles, such as blank, arrow, or text buttons.

2. Link Buttons to Specific Pages
   After adding a button, configure its action to navigate to a specific page. Select the button, go to the "Action" settings in the Format pane, and set the "Type" to "Page Navigation." Choose the target page from the dropdown menu.

3. Control Button Visibility Using DAX Measures
   Use the DAX measures you created earlier to control the visibility of navigation buttons. For example, apply a filter to the button's "Visible" property based on the user's role. If the measure returns a value of 1, the button will appear; otherwise, it will remain hidden.

Page1_Access = IF(SELECTEDVALUE(SecurityTable[Role]) = "Sales", 1, 0)

1. Test Button Functionality
   Preview your report to ensure the buttons work as intended. Verify that users can only see and click buttons leading to pages they are authorized to access.

Tip: Use consistent button styles and labels to make navigation intuitive for users. This enhances the user experience while maintaining page level security.

By following these steps, you can create a secure navigation system that aligns with your page level access requirements. This approach ensures users interact only with the pages relevant to their roles, improving both security and usability.

Testing and validating page level access in Power BI Service

Testing and validation are essential to ensure your page level security setup works as expected. After publishing your report to the Power BI Service, you need to verify that users can only access the pages assigned to their roles.

Steps to Test Page Level Access

1. Publish Your Report
   Save your Power BI report and publish it to the Power BI Service. Navigate to the workspace where your report is stored and ensure the dataset is linked correctly.

2. Assign Users to Roles
   In the Power BI Service, go to the "Security" settings of your dataset. Add users to their respective roles based on the security table you created.

3. Test with Different User Accounts
   Use test accounts or ask colleagues to log in and access the report. Verify that each user sees only the pages they are authorized to view. For example, a Sales user should only see sales-related pages, while an HR user should access HR-specific pages.

4. Validate Navigation Buttons
   Check that navigation buttons appear and function correctly for each user role. Ensure users cannot see buttons leading to unauthorized pages.

5. Review Filters and DAX Measures
   Confirm that the DAX measures controlling page visibility work as intended. Test edge cases, such as users with no assigned roles, to ensure the report handles them gracefully.

Note: Regularly review and update your security table to reflect changes in user roles or organizational structure. This keeps your page level access accurate and effective.

Benefits of Thorough Testing

Testing and validation help you identify and resolve issues before users encounter them. This ensures a smooth experience and strengthens the security of your Power BI reports. By validating your setup, you can confidently deliver tailored insights to each user group while safeguarding sensitive information.

Advanced Techniques and Enhancements

Dynamic page-level security using user attributes

Dynamic page-level security allows you to tailor access based on user-specific attributes, such as department, region, or job title. This technique ensures that users see only the pages relevant to their unique profile. To implement this, you can use the USERPRINCIPALNAME() function in DAX to identify the logged-in user and match their attributes with the security table.

For example, if your security table includes columns for user email and department, you can create a measure that filters pages based on the department column.

Page_Access = IF(LOOKUPVALUE(SecurityTable[Department], SecurityTable[User Email], USERPRINCIPALNAME()) = "Sales", 1, 0)

This measure dynamically adjusts page visibility based on the user's department. By leveraging this approach, you can create a personalized experience for each user while maintaining robust security.

Tip: Keep your security table updated to reflect changes in user attributes. This ensures your dynamic page-level security remains effective.

Combining page level security with row level security

Combining page level security with dynamic row-level security enhances your report's overall security model. While page-level security controls access to specific pages, row-level security restricts data visibility within those pages. Together, they create a layered security approach that protects sensitive information.

To implement this combination, define roles in Power BI Desktop that filter both pages and rows. For instance, you can use DAX measures to restrict page access based on user roles and apply row-level filters to limit data visibility.

Page_Access = IF(SecurityTable[Role] = "HR", 1, 0)
Row_Filter = SecurityTable[Region] = "North America"

By combining these techniques, you ensure users interact only with the data and pages relevant to their roles. This approach is particularly useful for reports with multi-regional or departmental data.

Using bookmarks and slicers for enhanced navigation

Bookmarks and slicers can improve navigation while supporting page-level security. Bookmarks allow you to save specific views of your report, including filtered pages, and slicers enable users to interact with the report dynamically.

To use bookmarks for page-level security, create bookmarks for each role-specific view. Then, link these bookmarks to navigation buttons or slicers. For example, you can set up a slicer that filters pages based on user roles and use bookmarks to display the filtered view.

Steps to implement:

1. Create bookmarks for each role-specific view in Power BI Desktop.

2. Add slicers to your report that filter pages based on user roles.

3. Link navigation buttons to bookmarks for seamless transitions.

Note: Test your bookmarks and slicers thoroughly to ensure they work as intended for all user roles.

By combining bookmarks and slicers, you enhance navigation and create a user-friendly experience while maintaining page-level security.

Challenges and Limitations of Page Level Security

Limitations of using row level security for page-level access

Using row-level security as a workaround for page-level access has its drawbacks. While it effectively restricts data visibility, it doesn't inherently control access to report pages. You must rely on creative techniques, such as DAX measures and navigation buttons, to simulate page-level security. This approach can become complex and may require significant effort to set up and maintain.

Another limitation arises when users share roles. If multiple users belong to the same role, they might inadvertently gain access to pages intended for others. This can lead to confusion and potential security risks. You need to carefully design your security table and DAX expressions to avoid such issues.

Tip: Regularly review your security setup to ensure it aligns with your organization's access requirements.

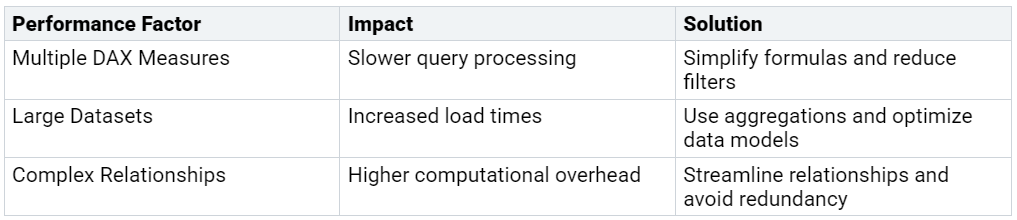

Performance considerations with complex security models

Complex security models can impact report performance. When you use multiple DAX measures and filters to control page access, Power BI may take longer to process queries. This delay can affect the user experience, especially for reports with large datasets or intricate relationships.

To minimize performance issues, optimize your DAX formulas and limit the number of filters applied simultaneously. You should also test your report under different conditions to identify bottlenecks.

Managing and maintaining security roles over time

Maintaining security roles can become challenging as your organization evolves. Changes in user roles, team structures, or access requirements may require frequent updates to your security table and DAX measures. If these updates aren't managed properly, they can lead to inconsistencies or errors in your page-level security setup.

You should establish a clear process for updating security roles. Use a centralized data source, like SharePoint or SQL Server, to store your security table. This makes it easier to modify roles and permissions without disrupting your report.

Note: Document your security setup and update procedures to ensure consistency and reduce the risk of errors.

---

Implementing page level security in Power BI involves a series of structured steps. You start by creating a security table, defining roles, and linking them to report pages. Then, you use DAX measures and navigation buttons to control access dynamically. Testing and validating your setup ensures users only see the pages relevant to their roles.

To overcome challenges, keep your security table updated and simplify DAX formulas to improve performance. Regularly review your security model to align with organizational changes. These practices help you maintain a secure and efficient reporting environment.

FAQ

How can I update the security table when user roles change?

You can use a centralized data source like SharePoint or SQL Server to store the security table. Update the table directly in the source, then refresh your Power BI dataset to apply the changes.

---

Can I use bookmarks for page-level security?

Yes, bookmarks can enhance navigation while supporting page-level security. Create role-specific bookmarks and link them to navigation buttons or slicers to control access dynamically.

---

What happens if a user doesn’t have a role assigned?

If a user lacks an assigned role, they won’t see any pages filtered by your security setup. You can create a default role to handle such cases and provide limited access.

---

Does page-level security affect report performance?

Complex security models may slow down query processing. Optimize DAX formulas and reduce filters to improve performance. Test your report with large datasets to identify bottlenecks.

---

Can I combine page-level security with row-level security?

Yes, combining both enhances security. Use DAX measures to restrict page access and apply row-level filters to limit data visibility within those pages. This layered approach protects sensitive information effectively.
